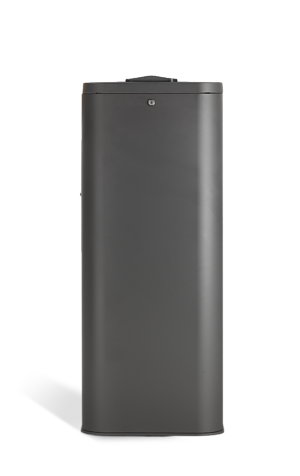

The latest addition to the company‘s range of road barriers is fitted with a 24Vdc motor and factory set for the application of 3, 4 or 5m booms (ELDOMS) and 6, 7 or 8m booms (ELDOML).
Designed and built for use on car-parks of all dimensions this road barrier made of spray-painted metal (cataphoresis passivation + powder spray painting), offers the maximum resistance to the effects of weathering throughout time even in environments where they are exposed to corrosives such as saline elements or smoke. All the components are housed and protected inside a cabinet fitted with ample, extractable and lockable inspection panel. The mechanical organs are mounted on a robust steel chassis and consist of a highly efficient, double reduction geared motor and an adjustable spring loaded balancing system.
The in-built command and control unit is located inside the cabinet and protected by a waterproof container. The integrated programmer allows encoder controlled boom positioning, automatic repositioning and self-programming. The electronic control unit is completed by the anti-crush and “soft start” and “soft stop” functions. The electronic programmer is factory fitted with a graphic LCD display (128 x 128 pixels) with backlighting in six different languages. The menu allows you to read the number of manoeuvres carried out and to rapidly set the system parameters including: the sequential button mode, automatic reclosing, warning lamp pre-flashing as well as deceleration adjustment both in the opening and closing directions. The electronics card, thanks to the presence of the real-time clock, allows you to set 10 events (shown on the display) and these events permit you to regulate the opening and closing of the motor at different times during the day within 3 weekly time bands (Mon-Fri, Sat-Sun, Mon-Sun); the events can be enabled or disabled (during holiday periods) either from the menu or by means of a radio channel.
It is possible to synchronize (working together in a single installation) two road barriers via cable, with the Cardin MODCA slot-in modules inserted.
Booms

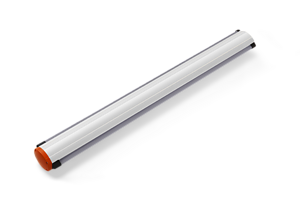

The barrier takes a special aluminium boom with rubber anti-shock protective edges and can be supplied either in a 3,4,5,6,7 or 8 metre version. The boom, to be ordered apart, is factory set for the application of a special led lighting system with variable flashing that illuminates it in whatever position it finds itself. The boom has rapid fitting cables that allow it to be replaced easily and quickly whenever necessary.

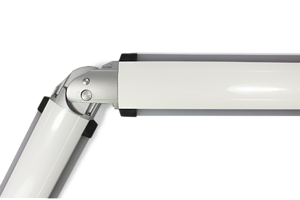

A special articulated aluminium boom with rubber anti-shock protective edges is also available. The boom consists of two parts for an overall length of 3m. The cast aluminium joint, which markedly reduces the height during opening, makes it ideal for use in installations such as underground car parks.
Slate Grey RAL7015 for 3m, 4m and 5m booms
Graphic LCD display
Real-time clock
Multi-decoding
Compatible with network interface
Master - Slave setting
Maximum boom length 3-5m
Opening time 3-4s
Intensive use
Ground fastening plate for ELDOMSDG
3m aluminium boom
4m aluminium boom
5m aluminium boom
3m articulated aluminium boom
3m strip of led lighting
4m strip of led lighting
5m strip of led lighting
Anti-collision system with roller bearings and plastic security screws that protects the DOM3W boom from accidental collision.
Boom anti-collision system for DOM3W
Spring for 3m booms + custom booms (lengths less than 3m yellow)
Spring for 3m booms (yellow)
Spring for 3-4m booms (green)
Spring for 4m booms (red)
Spring for 4m booms (red)
Spring for 5m booms (brown)
Fixed aluminium support fork - H910
Fixed aluminium support fork - H910 with an electromagnetic suction cup
Mobile support pole
Plastic fold-up boom curtain 200cm
Accessory box
Adhesive reflective tape strips for ELDOMS (3000 x 50mm)
Adhesive reflective tape strips for ELDOMS (4000 x 50mm)
Adhesive reflective tape strips for ELDOMS (5000 x 50mm)
Adhesive reflective tape (250 x 50mm)
Aluminium fold-up boom curtain 200cm
Quartz receiver module (433MHz)
Quartz receiver module (433MHz)
Quartz receiver module (868MHz)
Quartz receiver module (868MHz)
Quartz transceiver module (433MHz)
Quartz transceiver module (868MHz)
300-code memory module (S449 - S486)
Memory module (max. 1000 codes)
Code and memory programming base via USB
3G interface
3G interface + Sim Vodafone (10-year subscription)
WiFi interface
The module allows the exchange of information between the motor's electronic control unit and the Cardin 4G interface and also allows you to connect two motors via cable in order to use the synchronised master/slave function.
Data interface module via cable (master/slave)
The module allows the exchange of information between the motor's electronic control unit and the Cardin 4G interface via Bluetooth or directly between the control units and the apps CRD ONE and CRD TWO.
Bluetooth interface module for the X24 multi-decoding series
3m strip of led lighting
4m strip of led lighting
5m strip of led lighting
433.92 MHz
Slate Grey RAL7015 for 6m, 7m and 8m booms
Graphic LCD display
Real-time clock
Multi-decoding
Compatible with network interface
Master - Slave setting
Maximum boom length 6-8m
Opening time 6-12s
Intensive use
Ground fastening plate for ELDOMLDG

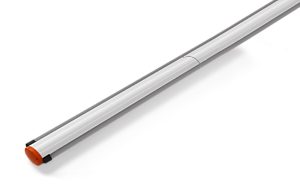

6m aluminium boom with joint
7m aluminium boom with joint
8m aluminium boom with joint
6m strip of led lighting

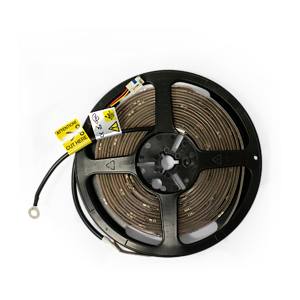

7m strip of led lighting
8m strip of led lighting
Spring for 6m booms (blue)
Spring for 7m booms (brown x 2)
Spring for 8m booms (orange x 2)
Spring for 5m booms (brown)
Fixed aluminium support fork - H910
Fixed aluminium support fork - H910 with an electromagnetic suction cup
Mobile support pole
Aluminium fold-up boom curtain 200cm
Plastic fold-up boom curtain 200cm
Accessory box
Adhesive reflective tape strips for ELDOMS (3000 x 50mm)
Adhesive reflective tape strips for ELDOMS (4000 x 50mm)
Adhesive reflective tape strips for ELDOMS (5000 x 50mm)
Adhesive reflective tape (250 x 50mm)
Quartz receiver module (433MHz)
Quartz receiver module (433MHz)
Quartz receiver module (868MHz)
Quartz receiver module (868MHz)
Quartz transceiver module (433MHz)
Quartz transceiver module (868MHz)
300-code memory module (S449 - S486)
Memory module (max. 1000 codes)
Code and memory programming base via USB
3G interface
3G interface + Sim Vodafone (10-year subscription)
WiFi interface
The module allows the exchange of information between the motor's electronic control unit and the Cardin 4G interface via Bluetooth or directly between the control units and the apps CRD ONE and CRD TWO.
Bluetooth interface module for the X24 multi-decoding series
The module allows the exchange of information between the motor's electronic control unit and the Cardin 4G interface and also allows you to connect two motors via cable in order to use the synchronised master/slave function.
Data interface module via cable (master/slave)
6m strip of led lighting
7m strip of led lighting
8m strip of led lighting
433.92 MHz
Slate Grey RAL7015 for 3m, 4m and 5m booms
Graphic LCD display
Real-time clock
Multi-decoding
Compatible with network interface
Master - Slave setting
Maximum boom length 3-5m
Opening time 3-4s
Intensive use
3m aluminium boom
4m aluminium boom
5m aluminium boom
3m articulated aluminium boom
3m strip of led lighting
4m strip of led lighting
5m strip of led lighting
Battery charger kit + NiMH batteries
Ground fastening plate for ELDOMSDG
Anti-collision system with roller bearings and plastic security screws that protects the DOM3W boom from accidental collision.
Boom anti-collision system for DOM3W
Spring for 3m booms + custom booms (lengths less than 3m yellow)
Spring for 3m booms (yellow)
Spring for 3-4m booms (green)
Spring for 4m booms (red)
Spring for 4m booms (red)
Spring for 5m booms (brown)
Fixed aluminium support fork - H910
Fixed aluminium support fork - H910 with an electromagnetic suction cup
Mobile support pole
Plastic fold-up boom curtain 200cm
Accessory box
Adhesive reflective tape strips for ELDOMS (3000 x 50mm)
Adhesive reflective tape strips for ELDOMS (4000 x 50mm)
Adhesive reflective tape strips for ELDOMS (5000 x 50mm)
Adhesive reflective tape (250 x 50mm)
Aluminium fold-up boom curtain 200cm
Quartz receiver module (433MHz)
Quartz receiver module (433MHz)
Quartz receiver module (868MHz)
Quartz receiver module (868MHz)
Quartz transceiver module (433MHz)
Quartz transceiver module (868MHz)
300-code memory module (S449 - S486)
Memory module (max. 1000 codes)
Code and memory programming base via USB
3G interface
3G interface + Sim Vodafone (10-year subscription)
WiFi interface
The module allows the exchange of information between the motor's electronic control unit and the Cardin 4G interface and also allows you to connect two motors via cable in order to use the synchronised master/slave function.
Data interface module via cable (master/slave)
The module allows the exchange of information between the motor's electronic control unit and the Cardin 4G interface via Bluetooth or directly between the control units and the apps CRD ONE and CRD TWO.
Bluetooth interface module for the X24 multi-decoding series
A wired, interference-free Master/Slave interface. Due to its ability to function with cables up to 50 metres in length, it is suitable for large-scale installations.
Wired long-distance master/slave interface
433.92 MHz
Slate Grey RAL7015 for 6m, 7m and 8m booms
Graphic LCD display
Real-time clock
Multi-decoding
Compatible with network interface
Master - Slave setting
Maximum boom length 6-8m
Opening time 6-12s
Intensive use
6m aluminium boom with joint
7m aluminium boom with joint
8m aluminium boom with joint
6m strip of led lighting
7m strip of led lighting
8m strip of led lighting
Battery charger kit + NiMH batteries
Ground fastening plate for ELDOMLDG
Spring for 6m booms (blue)
Spring for 7m booms (brown x 2)
Spring for 8m booms (orange x 2)
Spring for 5m booms (brown)
Fixed aluminium support fork - H910
Fixed aluminium support fork - H910 with an electromagnetic suction cup
Mobile support pole
Aluminium fold-up boom curtain 200cm
Plastic fold-up boom curtain 200cm
Accessory box
Adhesive reflective tape strips for ELDOMS (3000 x 50mm)
Adhesive reflective tape strips for ELDOMS (4000 x 50mm)
Adhesive reflective tape strips for ELDOMS (5000 x 50mm)
Adhesive reflective tape (250 x 50mm)
Quartz receiver module (433MHz)
Quartz receiver module (433MHz)
Quartz receiver module (868MHz)
Quartz receiver module (868MHz)
Quartz transceiver module (433MHz)
Quartz transceiver module (868MHz)
300-code memory module (S449 - S486)
Memory module (max. 1000 codes)
Code and memory programming base via USB
3G interface
3G interface + Sim Vodafone (10-year subscription)
WiFi interface
The module allows the exchange of information between the motor's electronic control unit and the Cardin 4G interface via Bluetooth or directly between the control units and the apps CRD ONE and CRD TWO.
Bluetooth interface module for the X24 multi-decoding series
The module allows the exchange of information between the motor's electronic control unit and the Cardin 4G interface and also allows you to connect two motors via cable in order to use the synchronised master/slave function.
Data interface module via cable (master/slave)
A wired, interference-free Master/Slave interface. Due to its ability to function with cables up to 50 metres in length, it is suitable for large-scale installations.
Wired long-distance master/slave interface
433.92 MHz
